[Application Case] Vertical one-key visual measuring instrument to detect ceramic parts defects!

Ceramic parts are usually made of ceramic materials, such as alumina, boron nitride, silicon carbide, etc. It has the advantages of high temperature resistance, wear resistance, insulation performance, etc., and is suitable for various industrial fields. Ceramic parts have a wide range of applications in the industrial field, and their properties make them a unique and useful material.

Ceramic parts in the process of processing lead to poor leakage, mixing, defects; It is recommended to use the vertical one-click vision measuring instrument, which can detect the appearance defects and poor dimensions of the product. Inspection efficiency up to 150 pieces per minute.

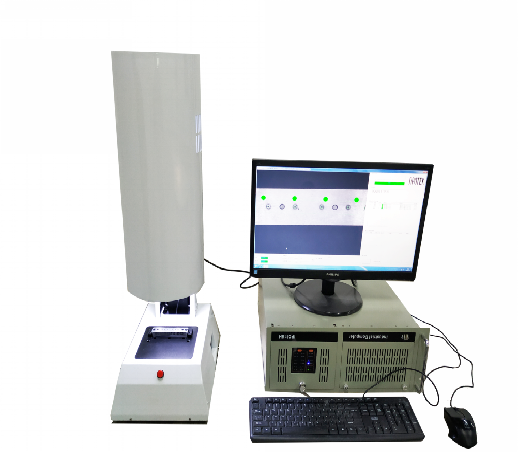

One-click Vision measuring instrument, a device that integrates advanced vision inspection technology and measurement functions, enabling fast and accurate vision measurement with simple operation.

One key vision measuring instrument features

One-click operation: Through a simple operation interface or button, you can complete the measurement task without complicated Settings.

Fast measurement: With fast response speed and measurement efficiency, the measurement is completed in a short time.

High precision: High resolution imaging system and precision algorithm can achieve high precision measurement results.

Versatility: Support a variety of measurement tasks, including length, width, diameter, Angle and other parameters measurement.

Data processing: With data processing, analysis and reporting functions, it is easy for users to view, store and share measurement results.

Wide applicability: applicable to the measurement needs of electronics, machinery, medical, automotive and other industries.

Equipment composition

Visual inspection software: SIPOTEK

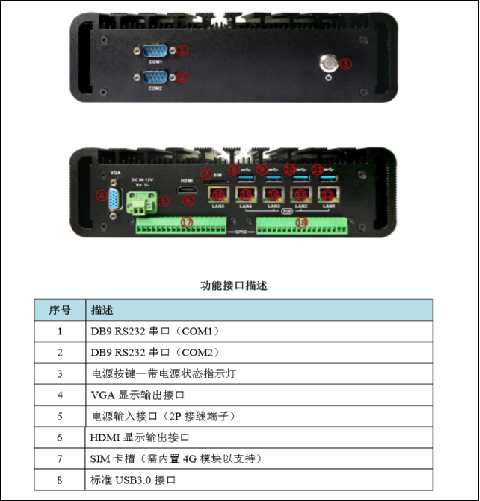

Industrial computer: Custom made by SIPOTEK

Display: PHILIPS 19 "LCD display

Industrial camera: Barsler Industrial camera

Camera adjustment servo module: customized by SIPOTEK

Industrial lens: FA HD optical industrial lens

Light source: Custom optical adaptive light source

Testing platform: Customer supply

Detection effect

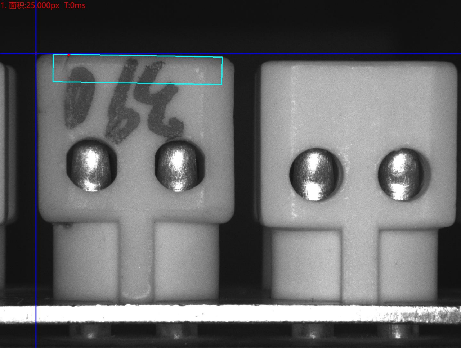

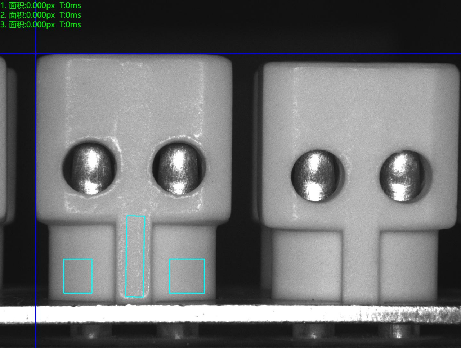

OK chart of good product can be checked

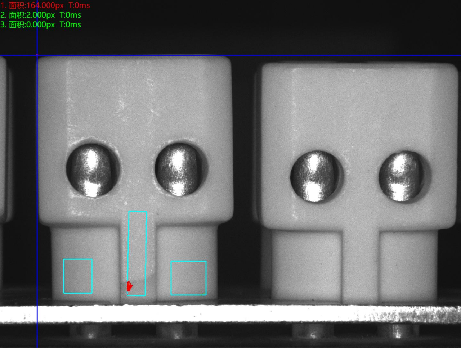

Can detect bad leakage

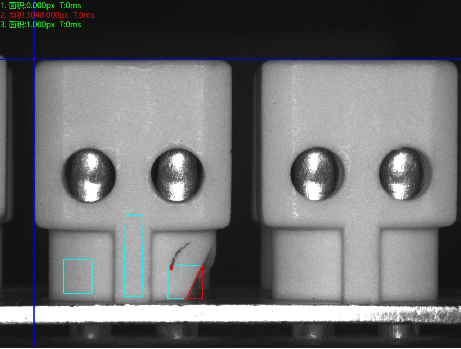

Defect detection

Mixture detection

System installation requirements

Inspection space for equipment placement: The Siptech Vision inspection system is installed separately outside the assembly line, and sufficient space is required to install the equipment.

Ambient temperature: 0-50 degrees Celsius;

Air humidity: below 90% RH;

Electronic interference: Provide a place for the device with less electronic interference.

Power supply: AC 220V, 50Hz, power consumption < 1KVA.
