[Application Case] High-speed visual inspection equipment to detect the size error of ceramic parts!

Any of various articles or utensils made of ceramic materials, usually by firing. Ceramic parts can include ceramics, ceramic tableware, ceramic decorations, etc., which are widely used in daily life, architectural decoration, artistic creation and other fields.

Ceramic parts lead to poor product size during processing, high-speed visual inspection equipment is recommended, and the detection efficiency can reach 150 pieces per minute.

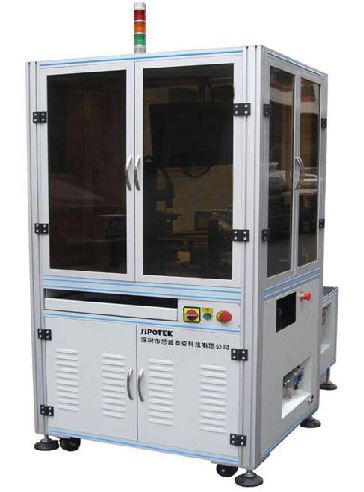

High-speed Vision Inspection equipment, a device that utilizes advanced image processing technology, artificial intelligence and machine learning algorithms for product inspection and quality control on high-speed production lines.

Equipment characteristics

Speed: Instant detection can be carried out on high-speed production lines to achieve quick response in milliseconds.

High precision: high-resolution imaging systems and sophisticated algorithms enable accurate detection and measurement.

Automation: The equipment has the automation function, can complete the detection task independently, reduce manual intervention.

Versatility: Supports a variety of detection tasks, such as appearance detection, defect detection, size measurement, character recognition, etc.

Real-time monitoring: real-time monitoring of the production process, timely detection of problems, to ensure product quality.

Data management: With data recording, analysis and reporting functions, support production data management and quality traceability.

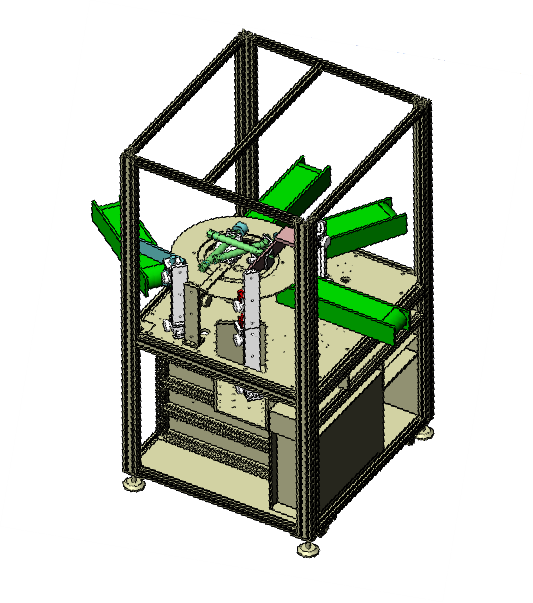

Equipment composition

Visual inspection software: SIPOTEK

Industrial computer: Custom made by SIPOTEK

Display: PHILIPS 19 "LCD display

Industrial camera: Barsler Industrial camera

Camera adjustment module: customized by SIPOTEK

Industrial lens: Telecentric HD optical industrial lens

Light source: Custom optical adaptive light source

Detection platform: professional optical glass platform

Servo motor: PANASONIC ·PANASONIC

Control system: customized by SIPOTEK

PLC Motion Collaboration: PANASONIC ·PANASONIC

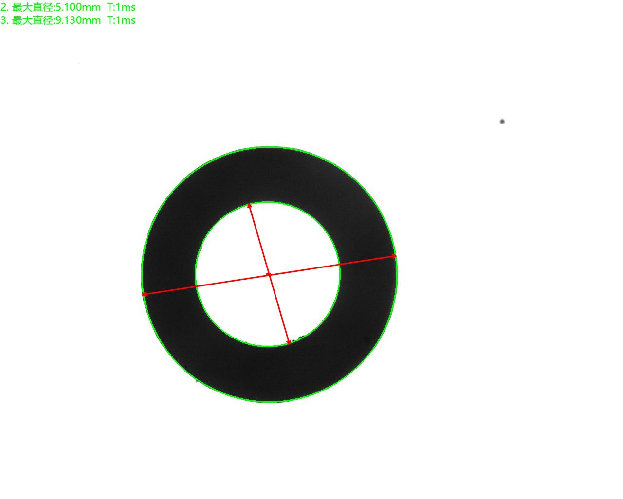

Detection effect

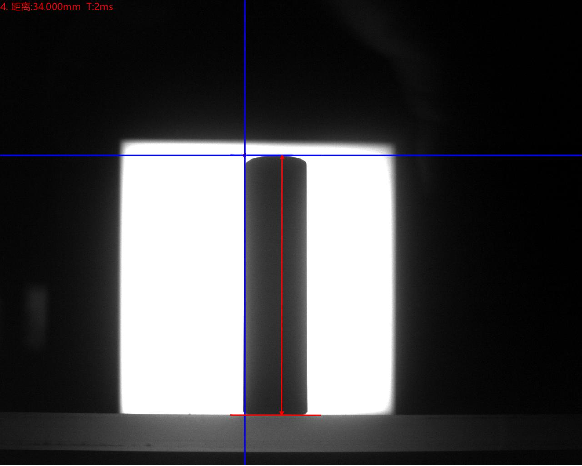

Poor dimensions can be detected

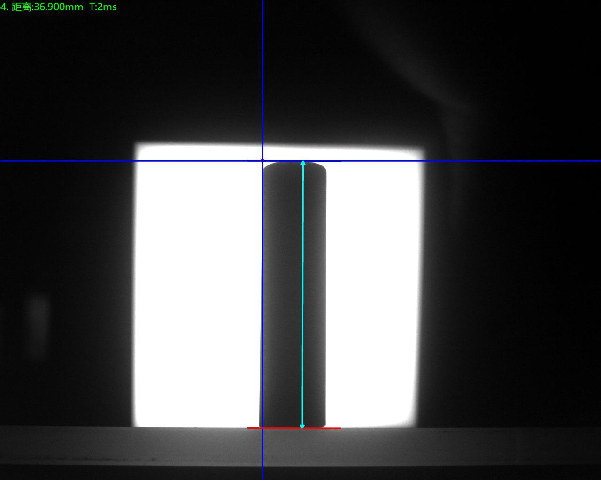

OK chart of good product can be detected

System installation requirements

Inspection space for equipment placement: When installing standard inspection equipment for Siptech Vision inspection systems, it is necessary to ensure sufficient space for installation of equipment.

Ambient temperature: 0-50 degrees Celsius;

Air humidity: below 90% RH;

Electronic interference: Provide a place for the device with less electronic interference.

Power supply: AC 220V, 50Hz, power consumption < 1KVA.
