Appearance detection scheme of skeleton transformer

Release time：2024-07-17Hits：

Skeleton transformer is a special type of transformer, which is usually used for power distribution and power transmission in power systems. Compared with the traditional oil-immersion transformer, the design of the skeleton transformer is more compact and has certain advantages and characteristics.

The skeleton transformer adopts a compact design and covers a small area, which is suitable for situations with limited space. Due to its simple structure, the skeleton transformer is relatively light and easy to install and maintain. Skeleton transformers are usually made of high-efficiency materials and designs, which can provide stable power transmission efficiency. Simplely designed skeleton transformers usually have high reliability, which can run steadily and maintain a long life. Skeleton transformers are usually used in urban power distribution systems, industrial electricity and other occasions, and are suitable for small and medium-sized power transmission.

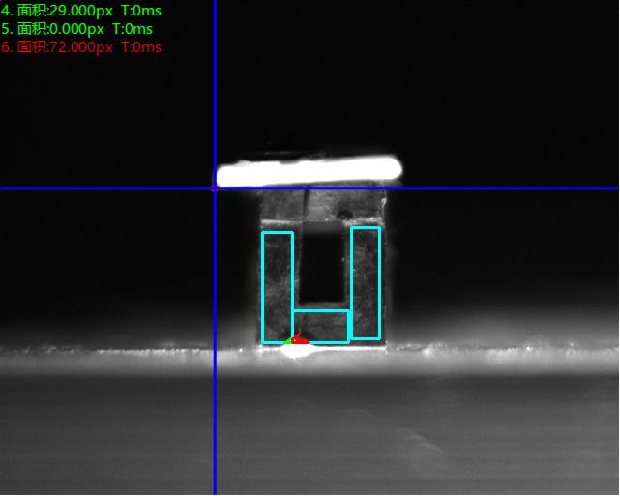

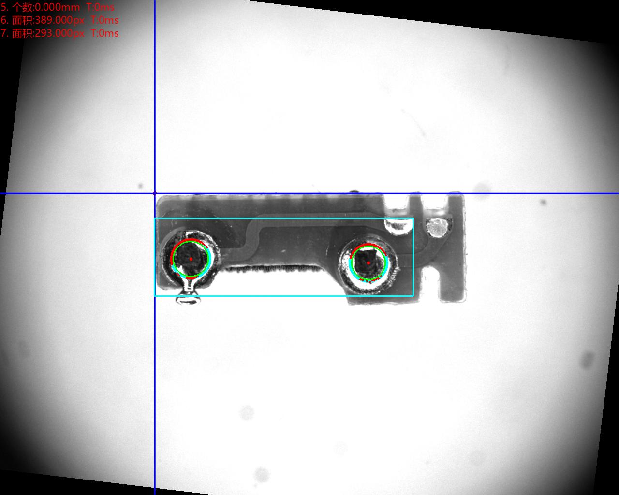

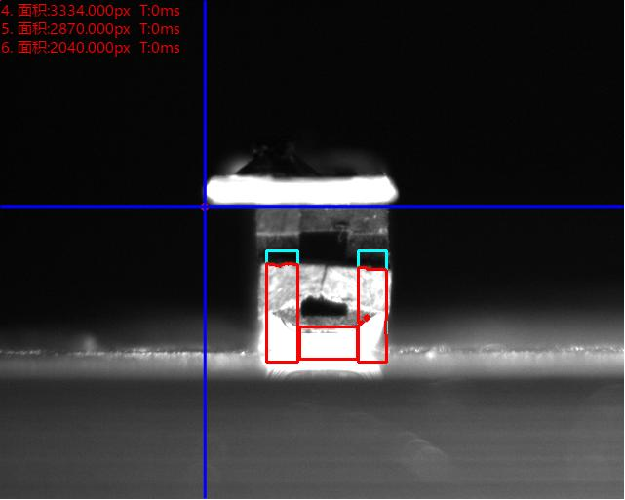

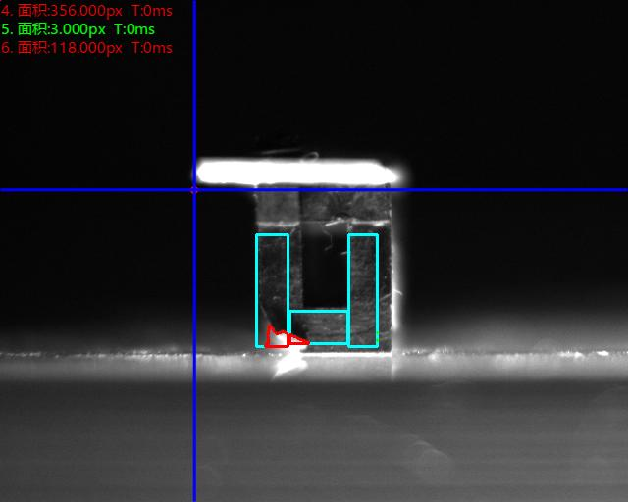

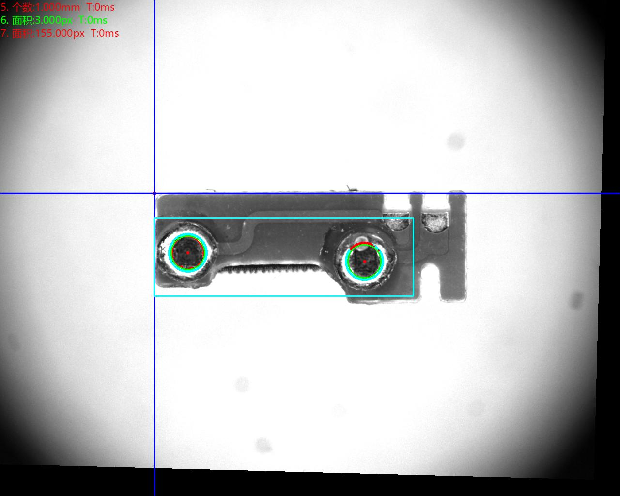

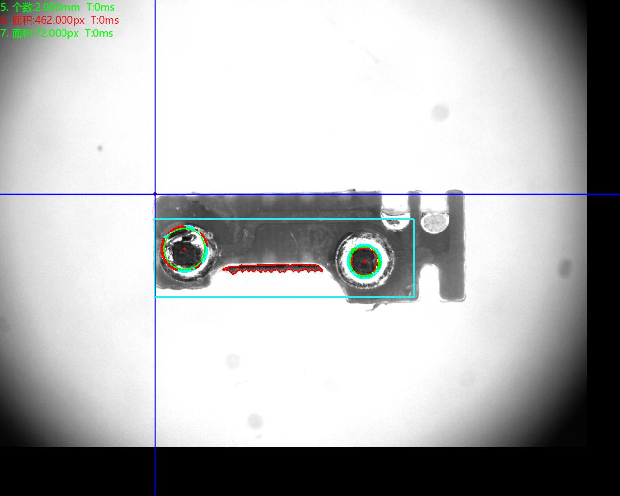

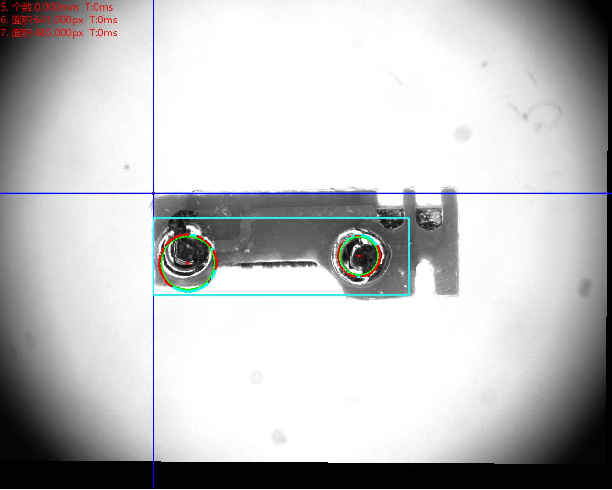

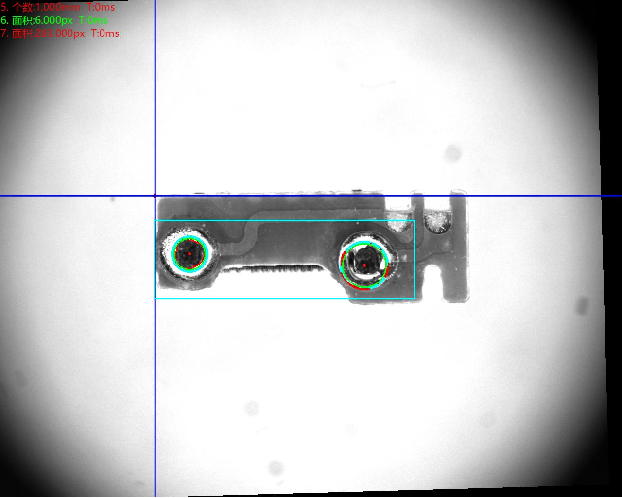

In the production process of the skeleton transformer, there are defects such as bad materials, side scratches, small columns, empty welding, tin, tin tips, virtual welding, etc. Sputek recommends the use of CCD vision detectors.

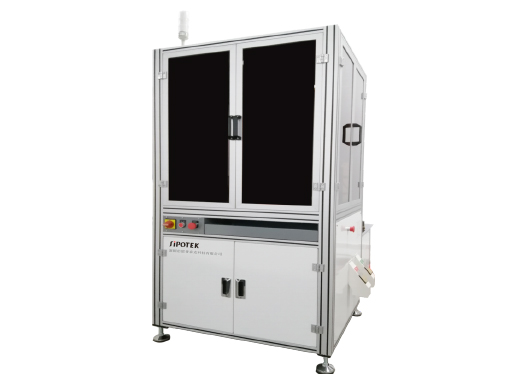

CCD vision detection machine is an automatic detection equipment that integrates CCD (charge coupling device) camera technology and visual recognition system. It is usually used in industrial production lines for high-precision detection, measurement and quality control of products.

CCD camera technology is used to achieve high-precision detection of product appearance, size, position and other parameters. Through the visual recognition system, product images can be quickly captured and processed to achieve efficient automatic detection. It supports a variety of detection tasks, such as defect detection, positioning detection, size measurement, etc., and is suitable for diversified production needs. It has stable performance and reliability to ensure stable operation for a long time. Support data recording, analysis and statistics, which is conducive to quality management and production optimization. It has an automatic control function and can be integrated with the production line to achieve unmanned production.
