The visual dimension inspection of the body controller of the assembly line visual inspection machine

With the continuous development of China's automobile industry, the requirements for all aspects of automobiles are increasing, and the control of key dimensions of auto parts will become more and more strict, from the previous partial sampling inspection gradually transformed into online full inspection, and the size of the detection has gradually increased from one or two key dimensions of the detection to the control of multiple sizes, which puts forward higher requirements for the speed and accuracy of the detection.

The body controller is an important component in the car, responsible for monitoring and controlling the various functions and systems of the vehicle to ensure the safe, stable and efficient operation of the vehicle. The body controller is usually responsible for monitoring and controlling the electronic equipment of the vehicle, such as the engine, transmission, brake system, suspension system, lighting system, etc., to ensure that these systems work in coordination. Integrated with multiple functional modules, the entire body system can be managed and controlled by a central control unit, improving the overall performance and efficiency of the system.

Faced with the dimensions of the body controller, most customers may choose to use a camera for inspection. However, in order to achieve μm level accuracy, it is necessary to use high-precision telecentric lens combined with high-resolution CMOS to achieve, the field of view is small, and the depth of field is also limited. In the aspect of on-line high-precision detection, there will be many influencing factors, some of which are discussed now.

Detection range

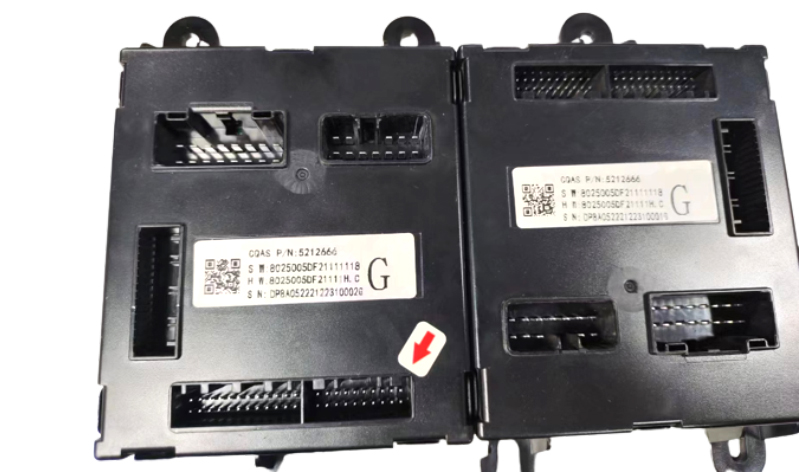

Dimensional inspection of body controllers. Detection speed 45/min

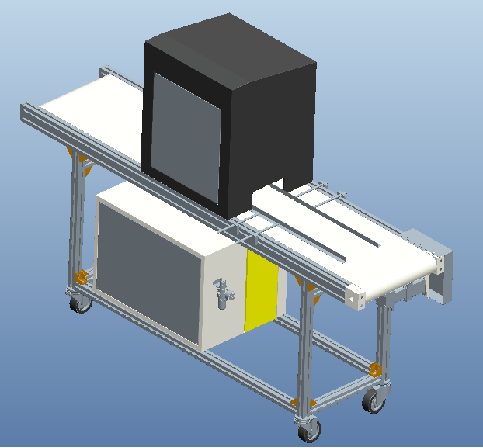

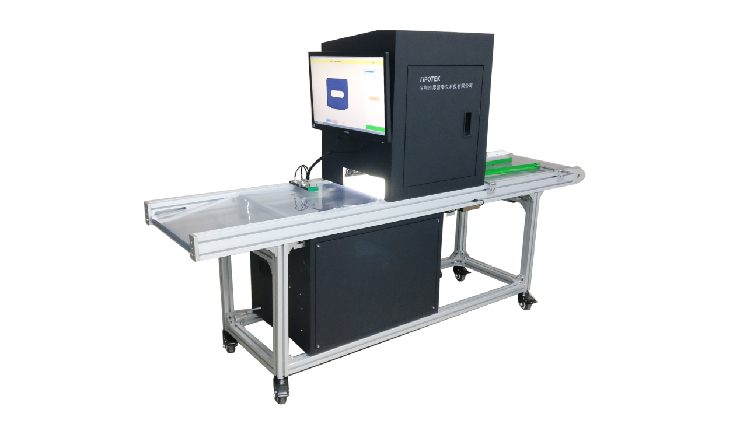

Configuration: Siptech's image product line visual inspection machine, equipped with visual inspection software test program, no programming, parts placed on the workbench, you can output results.

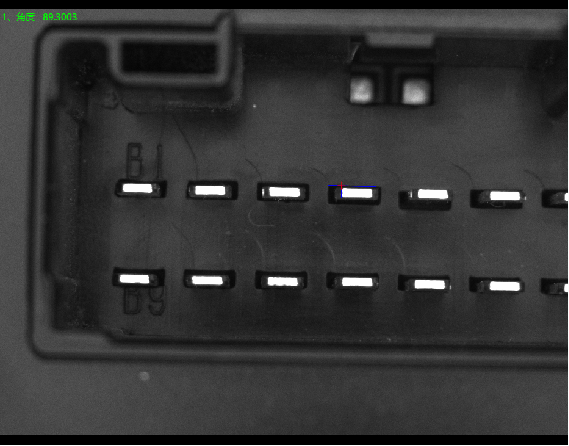

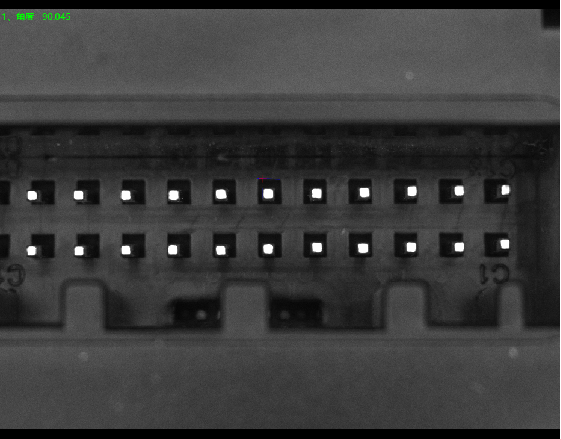

Detection effect

System installation requirements

Inspection space for equipment placement: When installing the Siptech vision inspection system on the assembly line, it is necessary to ensure sufficient space for installation of equipment.

Ambient temperature: 10-40 degrees Celsius;

Air humidity: below 90% RH;

Electronic interference: Provide a place for the device with less electronic interference.

Power supply: AC 220V, 50Hz, power consumption < 1KVA.
