Understand the mobile phone charging interface appearance defect determination method!

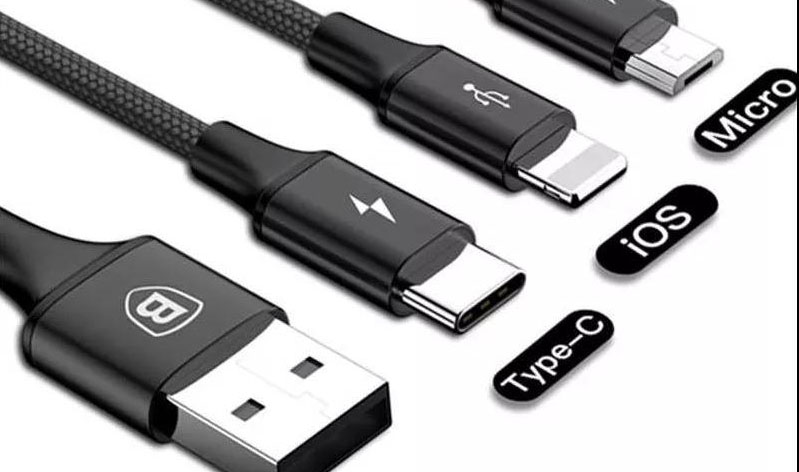

The charging interface of the mobile phone usually refers to the interface connecting the charger and the mobile phone, which is used to charge the mobile phone. Earlier phones used a more common charging port, commonly found on Android phones and other electronic devices.

This is a newer standard charging interface with a reversible plug design that can be plugged in any direction. Many new phones, tablets and laptops use this interface. Apple's proprietary charging port for iPhone, iPad and other Apple devices. The Lightning port can also transfer data.

Some mobile phones support wireless charging technology, the user does not need to connect the charging cable, just put the phone on the charging pad to charge. Each of these charging interfaces has its advantages and disadvantages, and users need to consider the interface type and compatibility when choosing a mobile phone to ensure the compatibility and convenience of charging equipment.

In the process of production and processing of mobile phone charging interface, there will inevitably be some problems, which must be tested to avoid bad products entering the market. Due to the shortcomings of slow speed, low efficiency and high cost of manual inspection, more and more factories began to introduce machine vision inspection technology.

Plastic industry case based on machine vision

Detection content

For customers produced in the production of large surface scratch detection, frame crush, flow, plastic edge, plastic not filled, overflow and other appearance defects. Siptech provides a fast and efficient solution for the inspection of appearance defects in injection molding.

Detection effect

Through the collection of image information, the existing defect detection, analysis and research are realized, and the specific judgment is made. When the system detects the defective product, the alarm signal is output.

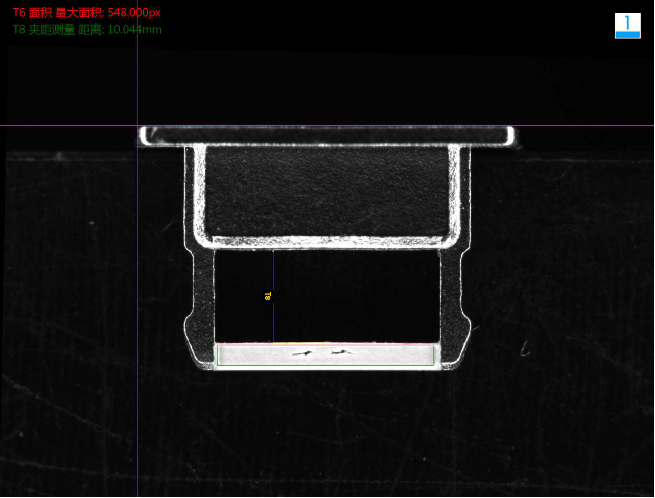

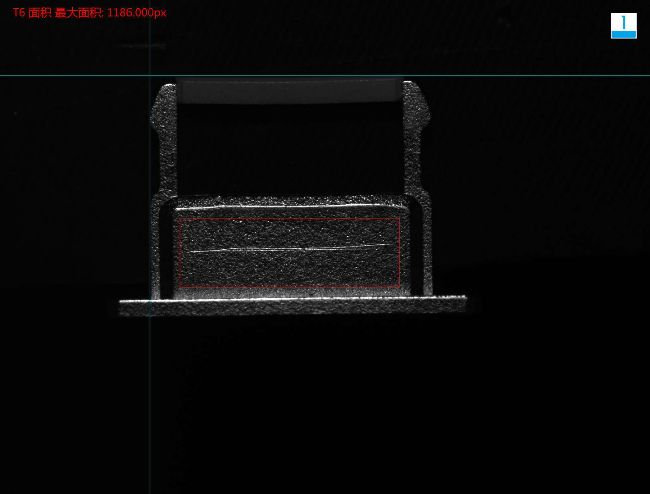

Large surface scratch detection

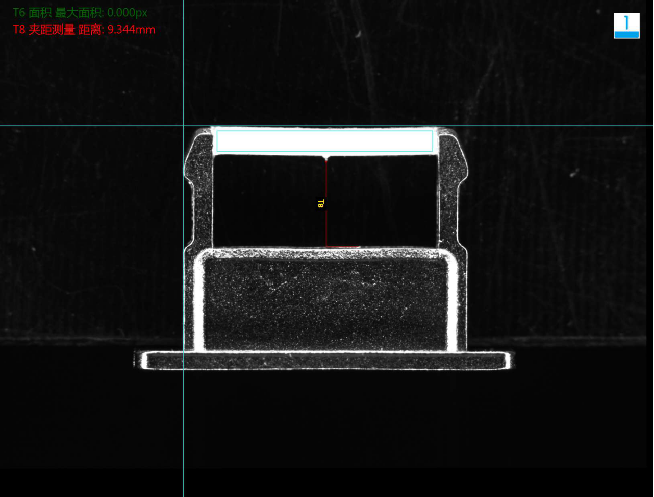

Frame crush detection

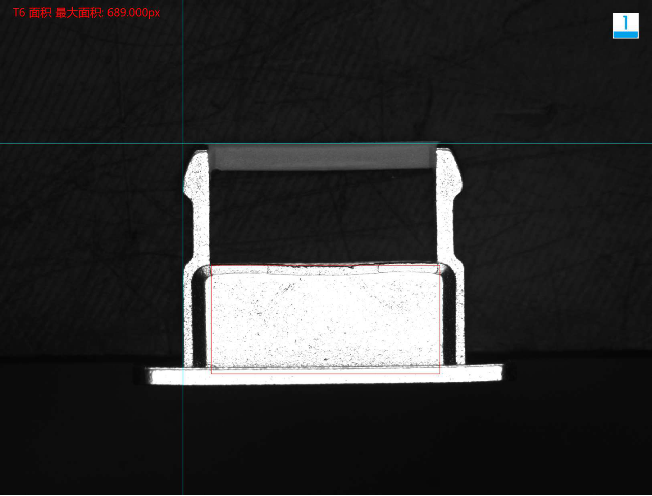

Flow pattern detection

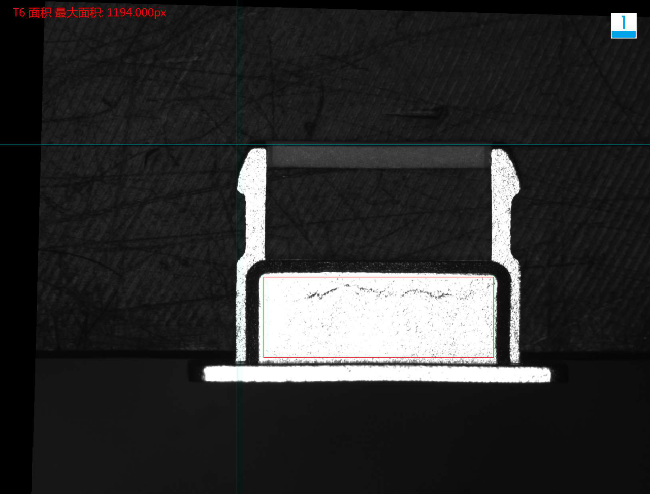

Rubber spill detection

Plastic rubber edge detection

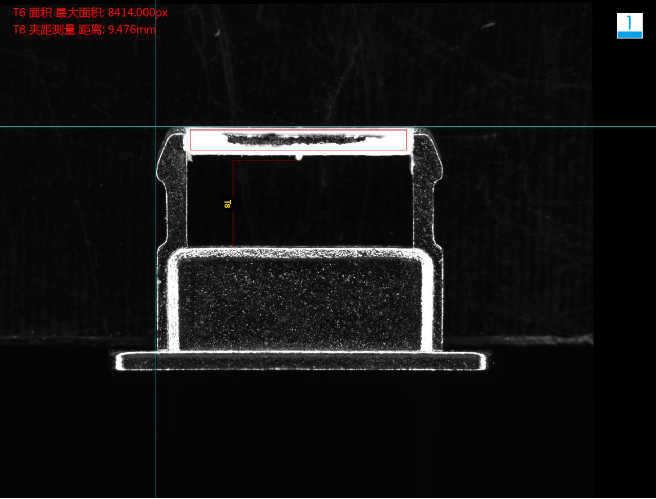

Plastic not filled test

System installation requirements

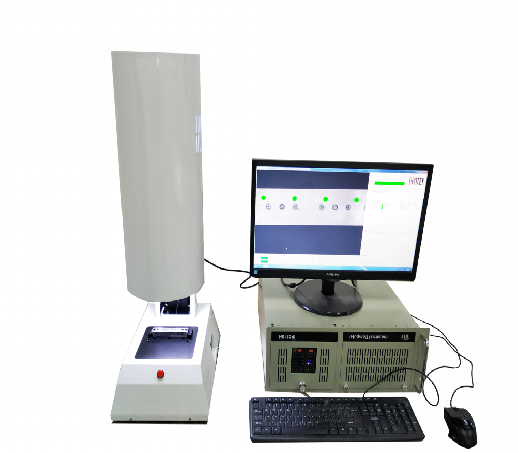

Inspection space for equipment placement: When installing the Siptech vision inspection system on the assembly line, it is necessary to ensure sufficient space for installation of equipment.

Ambient temperature: 0-50 degrees Celsius;

Air humidity: below 90% RH;

Electronic interference: Provide a place for the device with less electronic interference.

Power supply: AC 220V, 50Hz, power consumption < 1KVA.
