Hardware size detection problem? CCD visual detection takes you seconds to solve!

Hardware refers to parts or accessories made of metal materials, often used in mechanical equipment, building structures, automobiles, furniture and other fields. It is made of various metal materials, such as steel, aluminum alloy, stainless steel, brass, etc. The choice of material depends on the use of the hardware, strength requirements and environmental conditions. It is widely used in various industries and fields, such as machinery manufacturing, construction engineering, automobile manufacturing, electronic products, furniture manufacturing, etc. It plays a vital role in the assembly, installation and fixing of various equipment and products.

In this case, the size of hardware products is tested, and the backlight detection method of CCD visual detection equipment is recommended.

CCD visual inspection equipment uses CCD camera to capture the image of the product surface, and then analyzes and compares the image processing algorithm to identify the defect, position or other features of the product. CCD technology can efficiently convert optical signals to electrical signals and provide high quality digital images. Widely used in electronic manufacturing, automotive industry, food packaging, pharmaceutical fields, etc., for testing the appearance, size, position, defects and so on.

Equipment characteristics

CCD cameras provide high-resolution images that help accurately detect and analyze fine details.

CCD visual inspection equipment has a fast processing speed, which can realize the rapid detection of a large number of products.

It can be customized and adjusted according to the needs of different products, and is suitable for products of various shapes and sizes.

CCD visual inspection equipment can automate inspection and data analysis, reduce human intervention and improve production efficiency.

Equipment composition

Visual inspection software

Industrial computer

display

Industrial camera

Camera adjustment module

Industrial lens

illuminant

Control system

Servo motor

Reduction gear

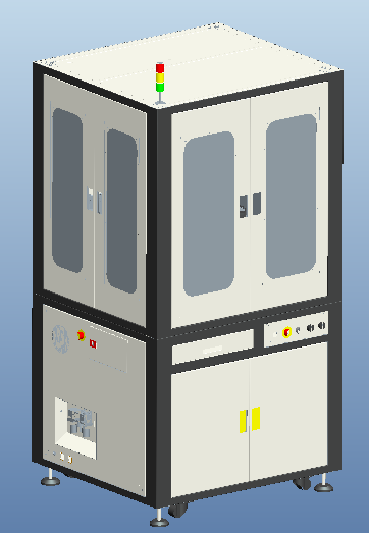

CCD visual inspection equipment 3d appearance diagram

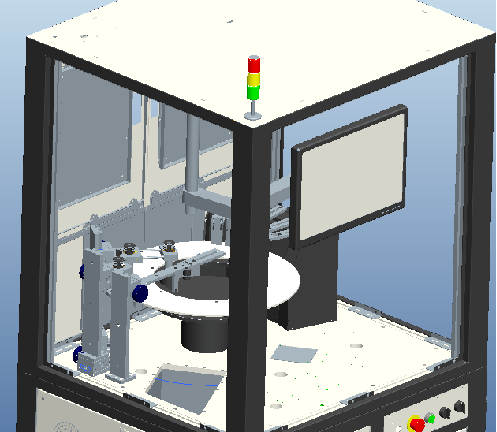

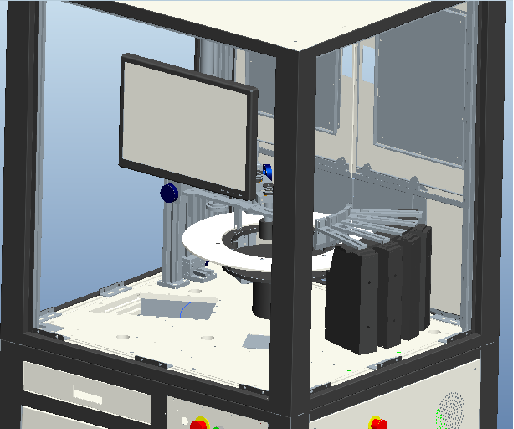

Inside the equipment

Equipment inspection process

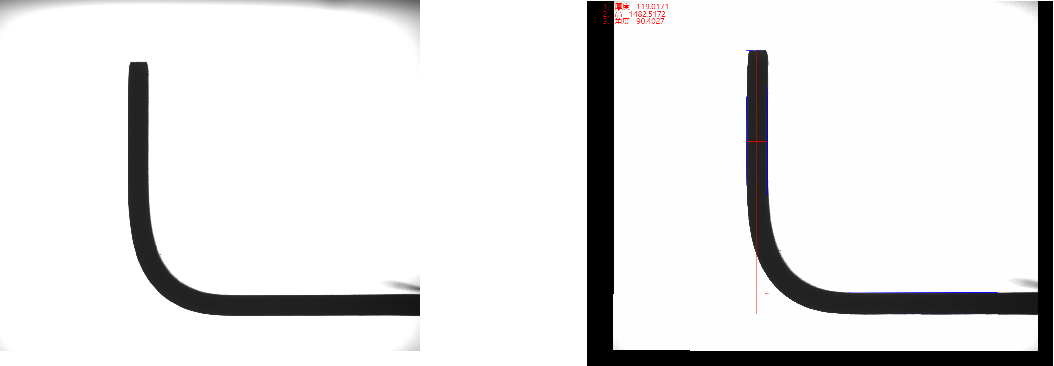

Detection effect

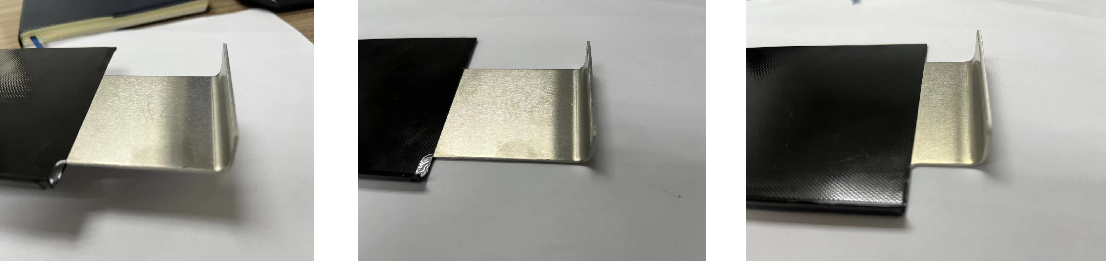

Conclusion: Thickness, height and Angle can be detected

System installation requirements

Inspection space for equipment placement: When installing standard inspection equipment for Siptech Vision inspection systems, it is necessary to ensure sufficient space for installation of equipment.

Ambient temperature: 0-50 degrees Celsius;

Air humidity: below 90% RH;

Electronic interference: Provide a place for the device with less electronic interference.

Power supply: AC 220V, 50Hz, power consumption < 1KVA.
