High-speed visual inspection, revealing cloud disk core material technology

Magnetic core materials play an important role in the fields of electromagnetic equipment, communication equipment, power systems and sensors, providing magnetic circuit and magnetic field control functions to achieve performance optimization and functional realization of various electromagnetic applications.

In this case, the customer wants to test the length, width and height of the magnetic core material, as well as the eccentricity. It is recommended to use cloud disk high-speed visual inspection equipment, and the detection efficiency is not less than 240 pieces per minute (depending on the product feed speed).

High-speed visual inspection equipment is a device specifically designed to quickly detect and analyze the visual characteristics and quality of products or objects. High-speed visual inspection equipment plays an important role in industrial production and quality control, providing efficient and accurate product inspection solutions.

Device function

Fast and efficient: With high frame rate and fast processing capability, it can complete the inspection of a large number of products in a short time.

Accuracy: High-resolution cameras and sophisticated image processing algorithms ensure accurate and reliable inspection results.

Automation: It can be integrated with the production line to achieve real-time detection and feedback in the automated production process.

Multi-function: It can be customized according to the requirements, suitable for different industries and application fields.

Equipment composition

Visual inspection software

Industrial computer

display

Industrial camera

Camera adjustment module

Industrial lens

ing light source

Control system

Servo motor

Reduction gear

Working principle

Detection effect

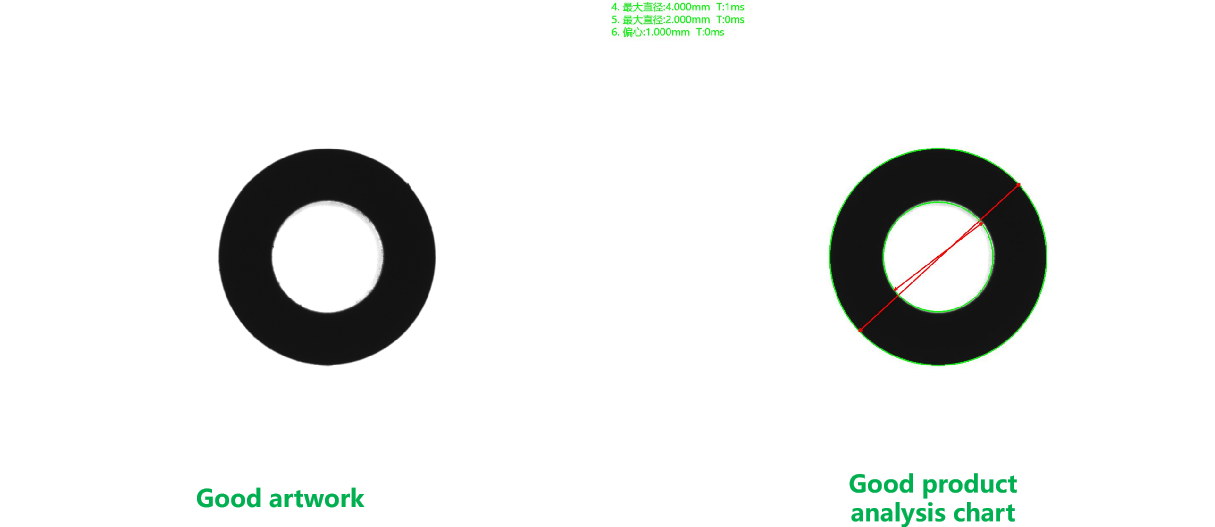

Bottom backlight detection good product analysis diagram: OK

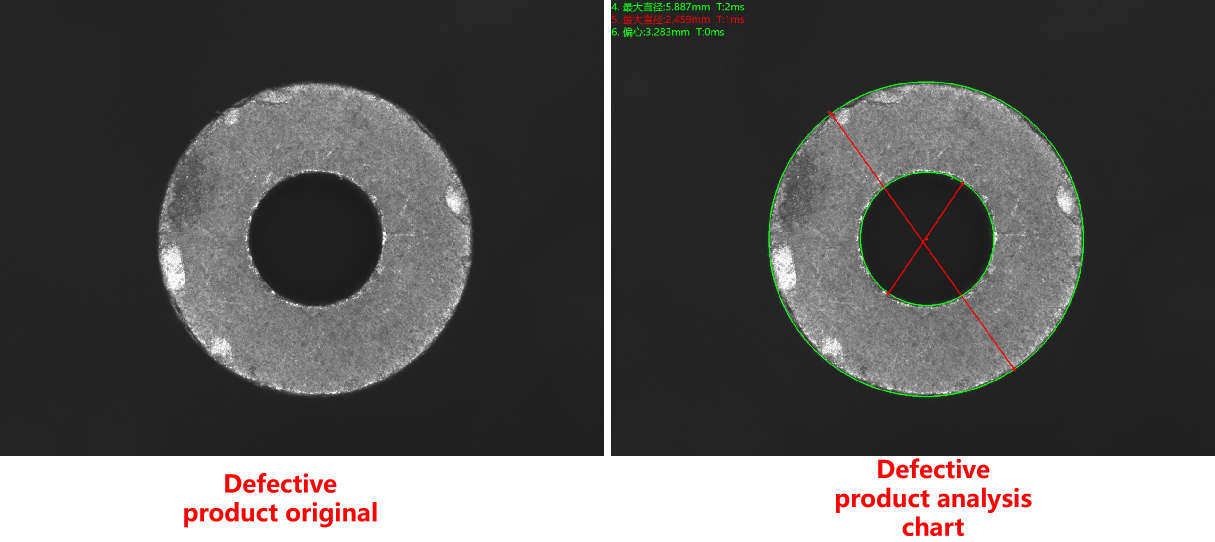

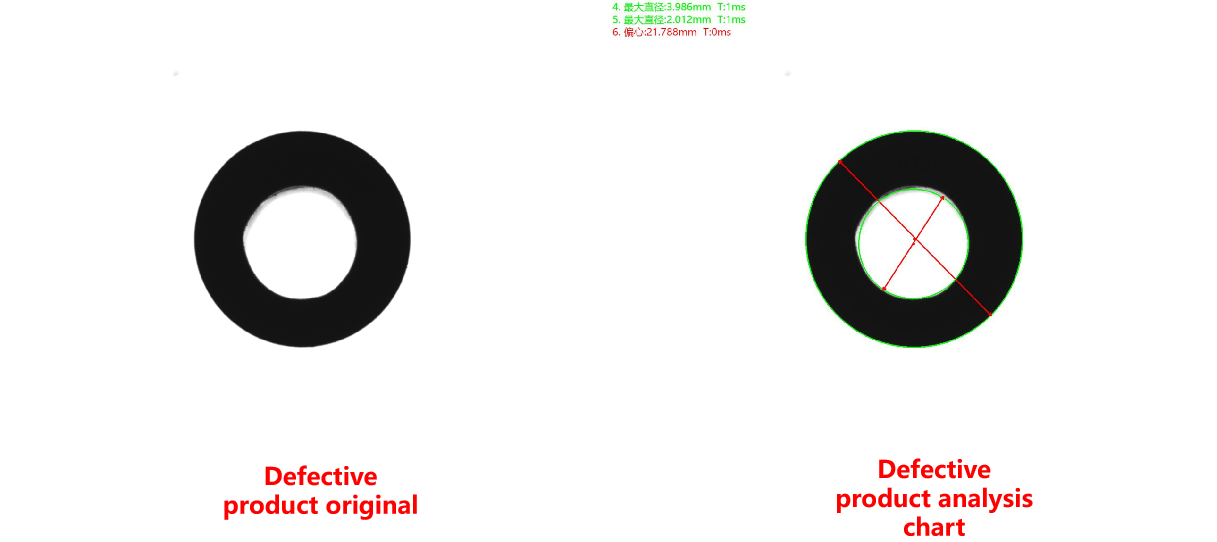

Bottom backlight detection of defective products analysis diagram: NG Bad feature: eccentric inner circle

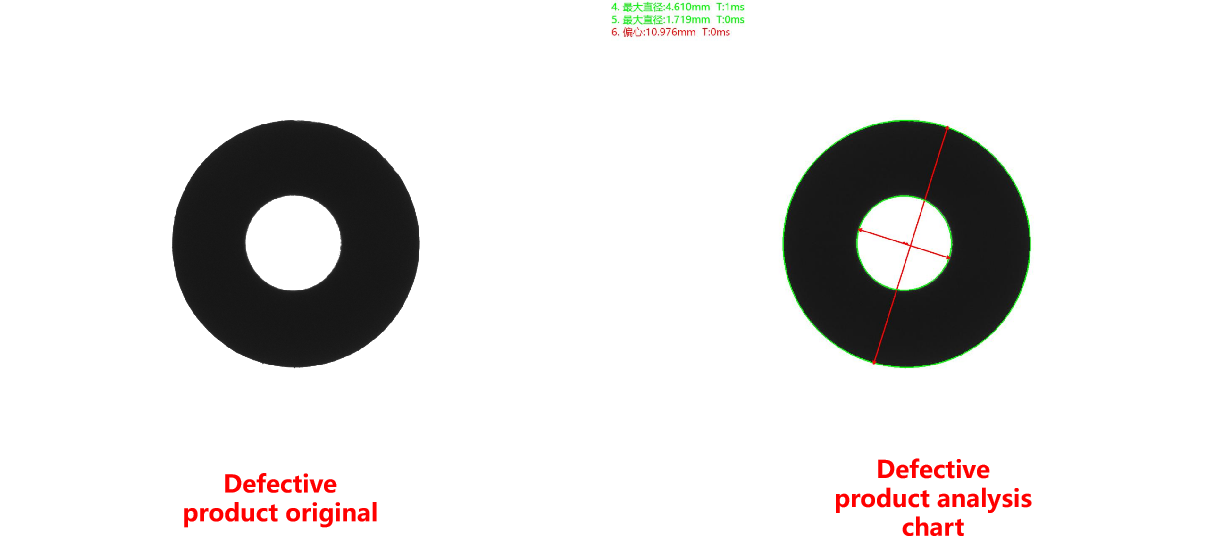

Bottom backlight detection of defective products analysis diagram: NG Bad feature: eccentric

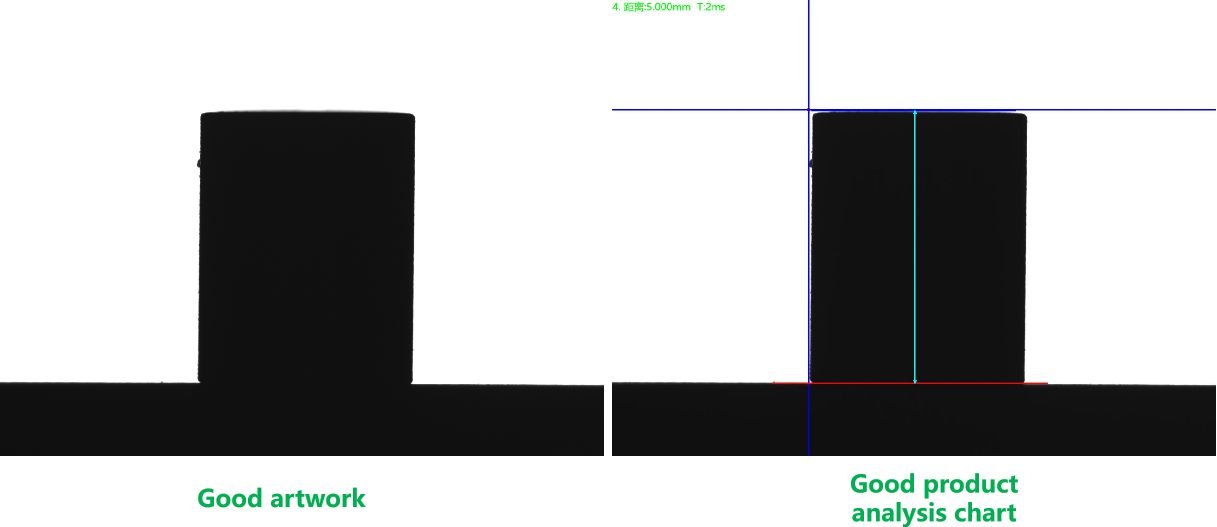

Side backlight detection good product analysis diagram: OK

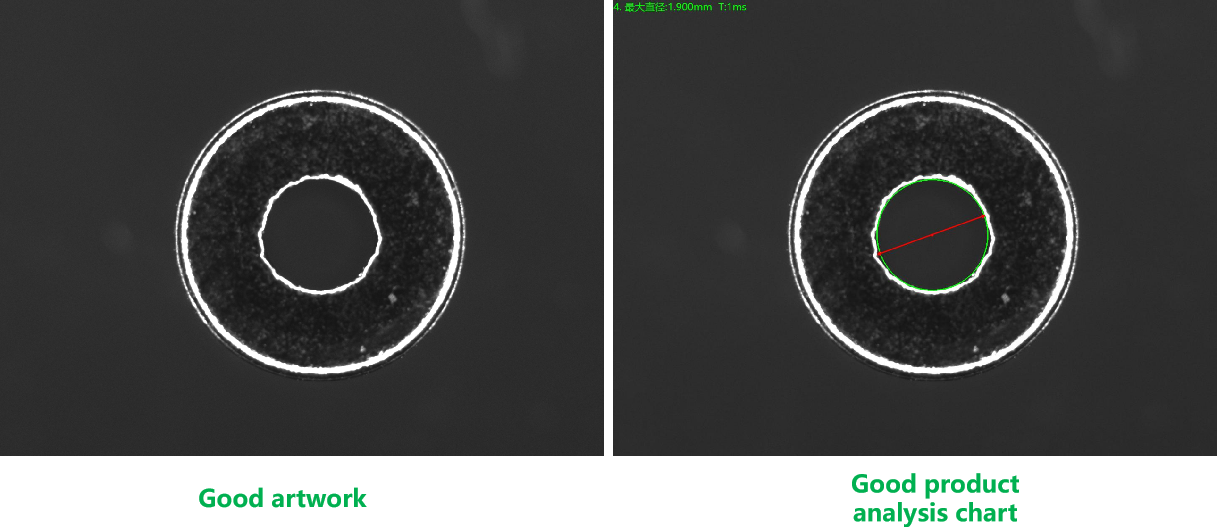

Top positive light detection good product analysis diagram: OK

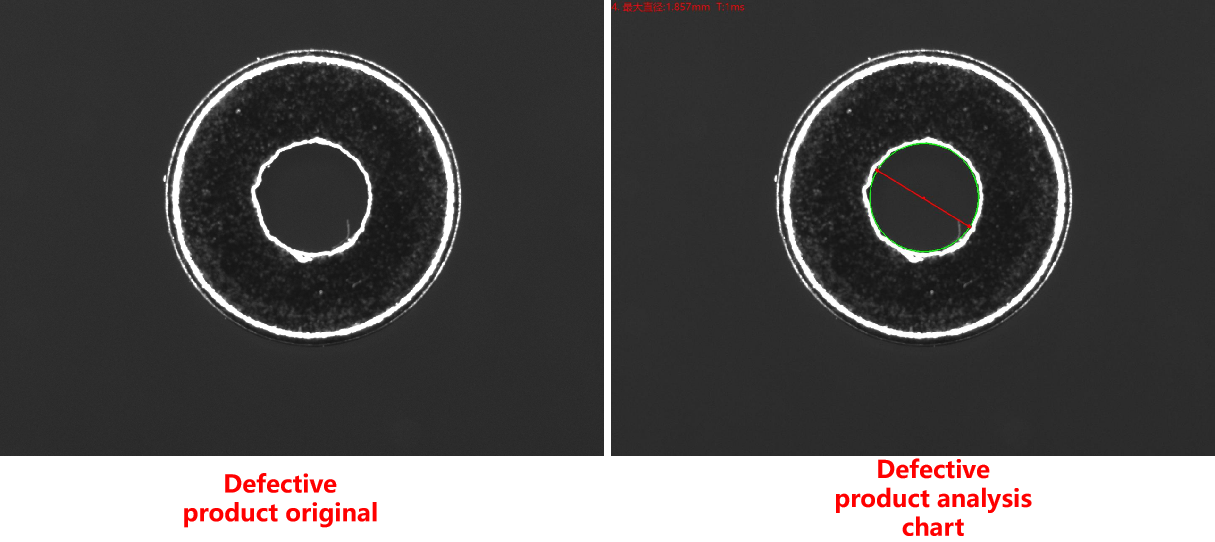

Top positive light detection of defective products analysis diagram: NG Bad features: the inner hole is too large

Top positive light detection of defective products analysis diagram: NG Bad features: the inner hole is small

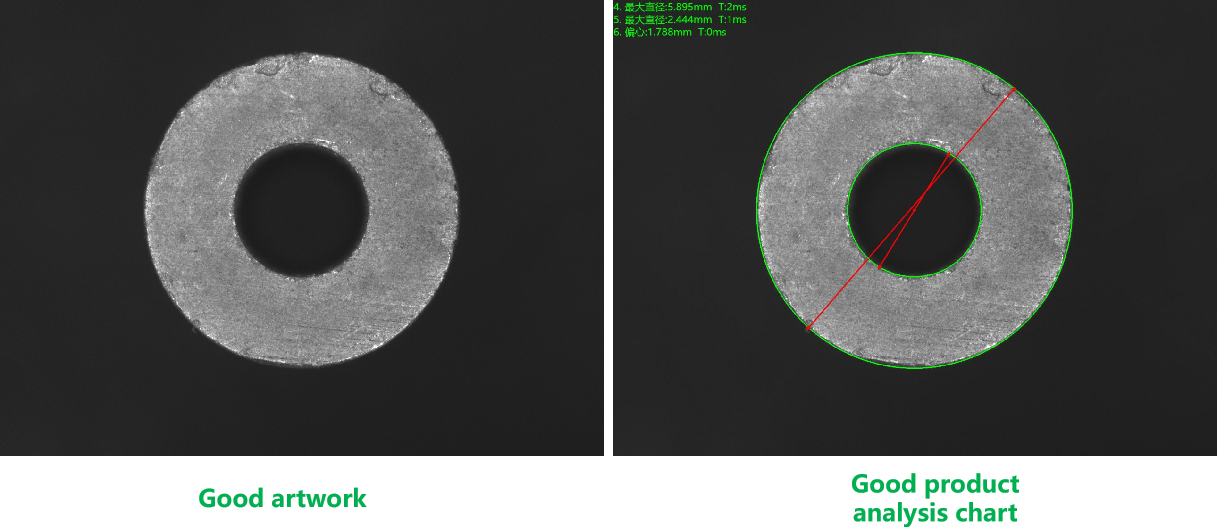

Top positive light detection good product analysis diagram: OK

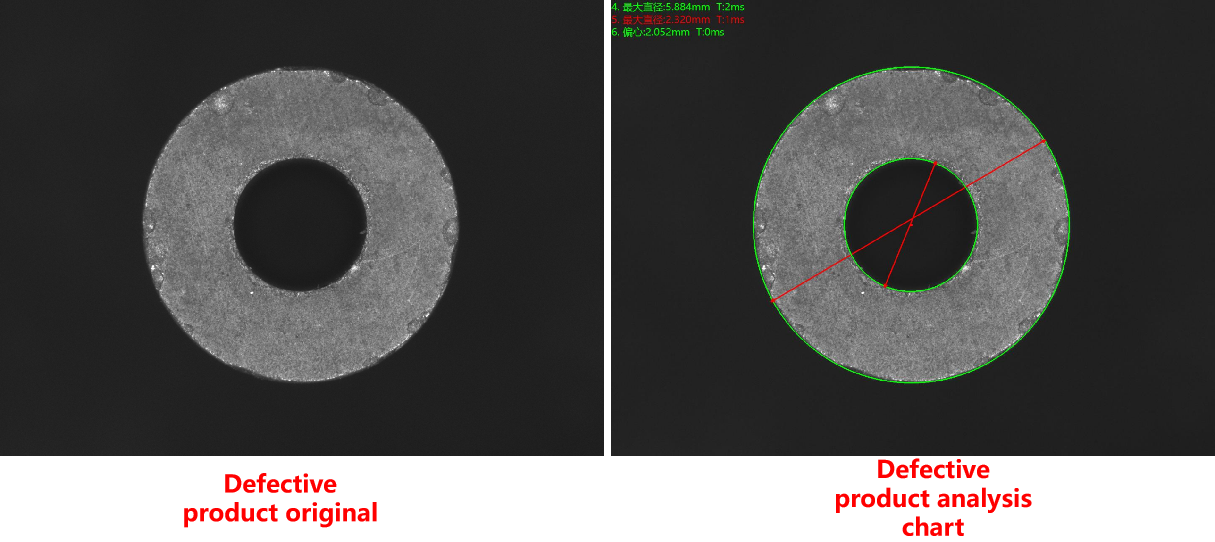

Top positive light detection of defective products analysis diagram: NG Bad features: the inner hole is small
