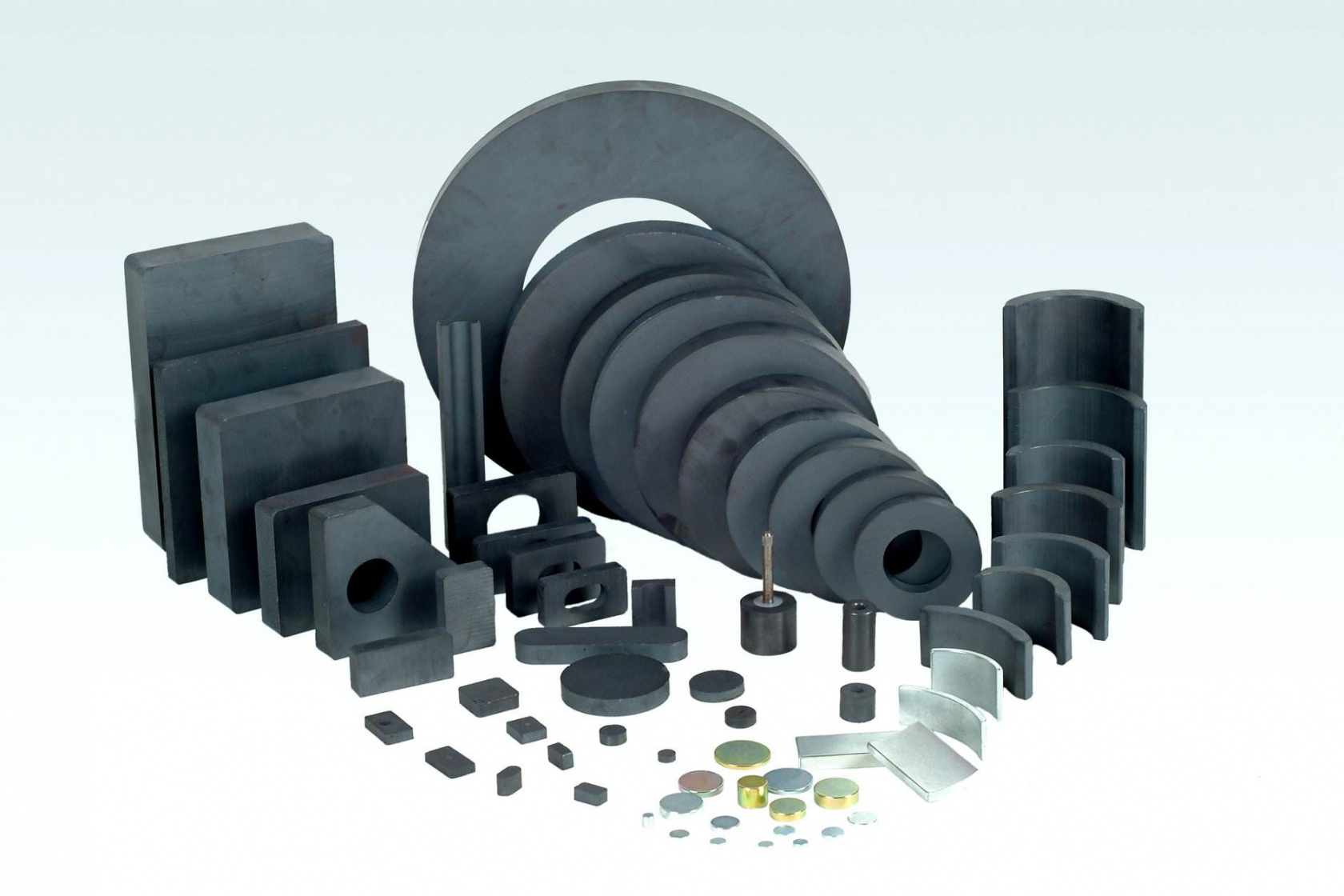

[Application case] Magnetic material inner hole visual inspection

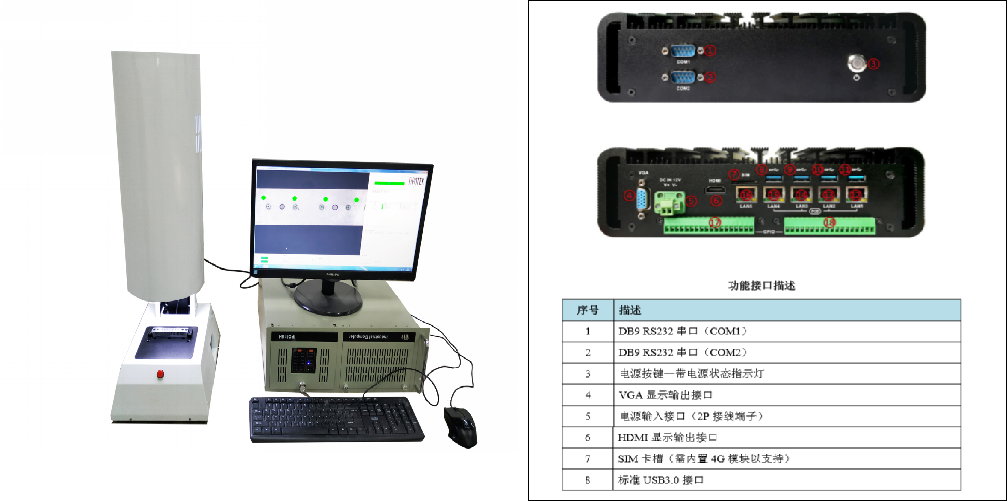

"One-button measuring instrument" usually refers to a device that integrates measuring functions, and the user can complete the corresponding measuring task by simply pressing a button (or clicking an icon). Usually designed to be simple and easy to use, it is designed to provide a fast and convenient measurement solution.

One key measuring instrument features

Fast measurement: The measurement can be completed in a simple operation, eliminating the complicated setup and debugging process.

Automation function: The equipment can automatically carry out the measurement process without the user's manual intervention.

Data processing: Measurement results can be automatically processed and analyzed to provide information required by users.

Versatility: It is possible to support many different types of measurements, such as length, area, volume, etc.

Portability: One-touch gauges may be designed to be easy to carry and move around, suitable for a variety of scenarios and environments.

User friendly interface: Devices typically have a clean, intuitive user interface that is easy for users to understand and operate.

Technical index

Detection speed A detection time 50ms (depending on manual loading and unloading speed)

Accuracy up to ±0.005mm

The recommended size ranges from 0.1 mm to 80mm

Detection The detection quality ranges from 0.1 to 1000g

Detecting object

Item detection

Internal hole inspection for products with maximum dimensions 20mm long x 16mm wide

Detection efficiency

No less than 60 pieces per minute (depending on product feed speed).

Application

It is suitable for the detection of rubber parts, precision hardware parts, automobile, mobile phone parts, plastic parts, electronic parts and other high-precision products.
