O-ring surface defect detection solution

In recent years, the rubber seal industry has developed rapidly, and the market situation is transparent and popular. In our lives come into contact with a lot of household appliances, such as: insulated water cups, drinking fountains, insulated boxes, insulated boxes, ovens, coffee POTS, etc., these daily appliances are inseparable from rubber seals, without rubber seals, the closing function of these items will be lost, the practicality of electrical appliances can not be reflected, and even may leak electricity, endangering life safety.

With its transparent and smooth appearance, coupled with its characteristics of high and low temperature resistance, and the advantages of not aging, not deformation, and its good performance in ozone resistance, solubility resistance, electrical insulation, rubber sealing rings are widely used in chemical, medical, food, electronics, machinery and other industries. In the automotive industry, rubber seals are used more, including the windshield, doors and Windows, the sealing of the body and the electronic parts and electrical assembly parts that we can't see are all sealed with rubber materials.

At present, there are many rubber parts production plants in China, but there is no factory for intelligent transformation and upgrading of rubber seals, so most of the factories producing rubber seals today have outdated equipment, backward industry, incomplete detection means, product quality is difficult to ensure and other problems, the quality detection of rubber seals has not attracted people's attention.

For a small example, in the quality detection of rubber O-rings, most factories are still using calipers to measure the inner diameter, outer diameter and cross section, and there are widespread shortcomings such as low manual detection efficiency and large subjective judgment errors. Because the O-ring is a flexible material, the measurement force will cause it to produce non-negligible deformation, and this measurement method can not meet the accuracy requirements of mechanical seal accessories.

In order to solve the problem of heavy programming and low efficiency of customer product measurement, Siptech provides efficient and concise O-ring surface defect detection solutions.

Detection range

Surface defect detection of rubber O-ring products. Detection speed 140/min per minute

Configuration: SP-T300 Cloud Disk high-speed vision inspection machine with SP-T300 imaging product line from SPtech, equipped with seal ring test program, no programming, parts placed on the workbench, you can output results.

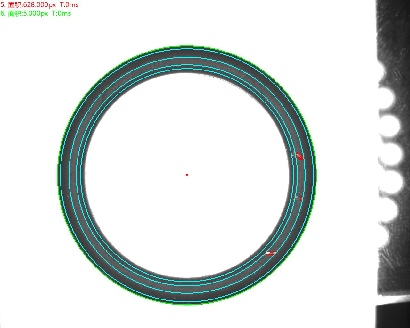

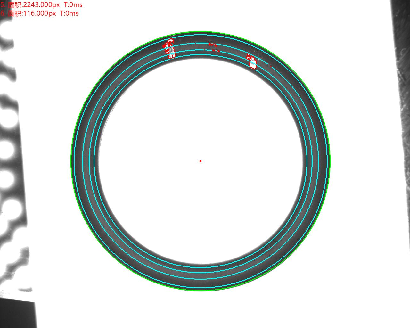

Detection effect

System installation requirements

Inspection space for equipment placement: When installing standard inspection equipment for Siptech Vision inspection systems, it is necessary to ensure sufficient space for installation of equipment.

Ambient temperature: 0-50 degrees Celsius;

Air humidity: below 90% RH;

Electronic interference: Provide a place for the device with less electronic interference.

Power supply: AC 220V, 50Hz, power consumption < 1KVA.
