The visual inspection system detects copper parts, will there be errors?

The traditional surface quality inspection of hardware and electronic products adopts the method of manual inspection by the quality inspector. However, these manual methods have the disadvantages of low sampling rate, low accuracy, poor real-time performance, low efficiency and high labor intensity, and the automatic surface detection method based on machine vision can overcome these disadvantages to a large extent.

At present, the application of machine vision technology, that is, the addition of vision systems on machines or automated production lines, has become an indispensable technical means of quality control in the electronics manufacturing industry. The surface inspection system based on machine vision mainly consists of two processes: image acquisition and defect detection. The image acquisition module consists of an industrial camera, an optical lens, a light source and a clamping device. The function of the image acquisition module is to collect the surface image of the target product, and the defect detection process is to identify the defect through image processing and classification technology according to the acquired image.

Test product

Inspection content: Appearance inspection of products with size length 20mm* width 20mm* thickness 5mm

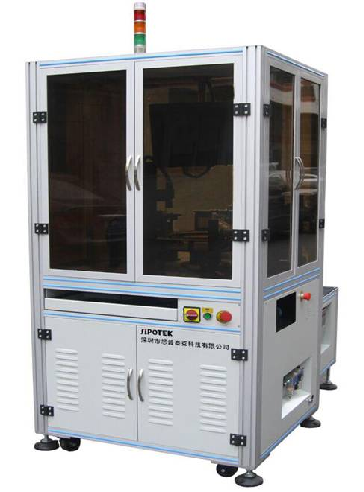

Testing equipment

Detection effect

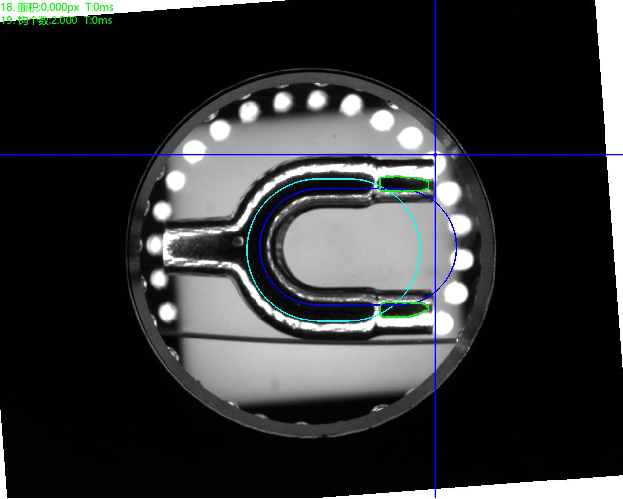

Good product OK map

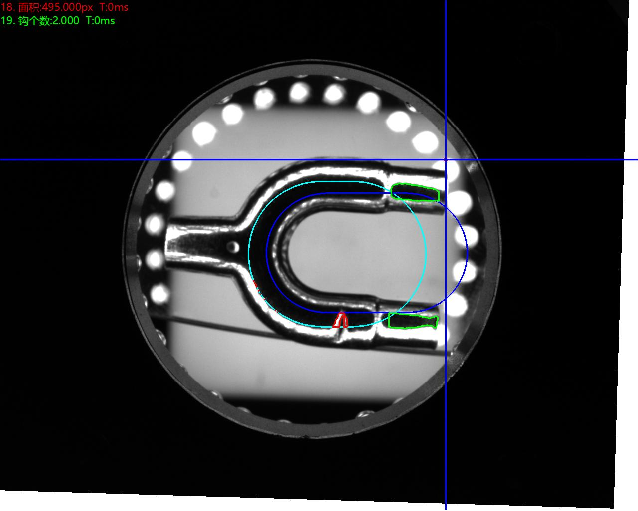

Scratch detection

Crush detection

System installation requirements

Inspection space for equipment placement: To install the overall inspection equipment of the Siptech vision inspection system, it is necessary to ensure that there is sufficient space to install the equipment.

Ambient temperature: 0-50 degrees Celsius;

Air humidity: below 90% RH;

Electronic interference: Provide a place for the device with less electronic interference.

Power supply: AC 220V, 50Hz, power consumption < 1KVA.
