How accurate is the high-speed visual inspection equipment to the rubber plug?

Rubber sealing ring used to seal liquid or gas round rubber products, usually used in industrial equipment, automobiles, machinery and other fields.

Rubber sealing ring in the production of the product lead to impurities, burrs, size, damage and other defects; The detection efficiency can reach no less than 300 pieces per minute. SP-T300 series cloud disk high-speed visual inspection equipment is recommended.

Rubber sealing ring visual inspection equipment is specially designed to detect the appearance quality and defects of rubber sealing rings, combining computer vision and image processing technology.

Equipment characteristics

Appearance defect detection: can efficiently and accurately detect the appearance defects of rubber seals, such as cracks, bubbles, deformation and other problems.

Automated operation: The equipment has an automated inspection process that can automatically capture seal images and analyze them, reducing manual intervention.

High-precision detection: The use of high-resolution cameras and advanced image processing algorithms to achieve high-precision detection of sealing ring appearance defects.

Fast inspection: The equipment can quickly process a large number of seal ring images, improving the inspection speed and production efficiency.

Automatic classification: Automatically identifies and classifies different types of appearance defects to help distinguish between qualified and unqualified products.

Data logging and analysis: Record test results, generate reports, and provide data analysis capabilities to help manufacturers monitor product quality and improve quality.

Device function

Appearance defect detection: Detect various defects on the surface of the rubber seal ring, such as cracks, bubbles, deformation, stains, etc., to ensure the appearance quality of the product.

Dimensional measurement: Measure the diameter, thickness or other key dimensions of the rubber seal to ensure that the product meets the specifications.

Color recognition: Identify the color of the rubber seal ring, and ensure that the color is uniform and consistent, in line with customer requirements.

Foreign body detection: Detect whether there is foreign body attached to the surface of the rubber sealing ring to avoid affecting the sealing effect.

Shape detection: To detect whether the shape of the rubber seal meets the standard requirements, such as roundness, flatness, etc.

Defect classification: Automatic identification and classification of various appearance defects to help distinguish between qualified and unqualified products.

Equipment composition

Visual inspection software

Industrial computer

display

Industrial camera

Camera adjustment module

Industrial lens

Ring light source

Control system

Servo motor

Reduction gear

Equipment inspection process

Detection effect

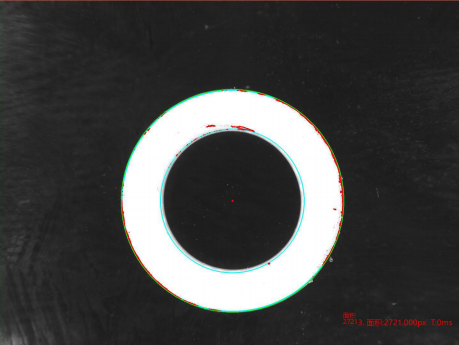

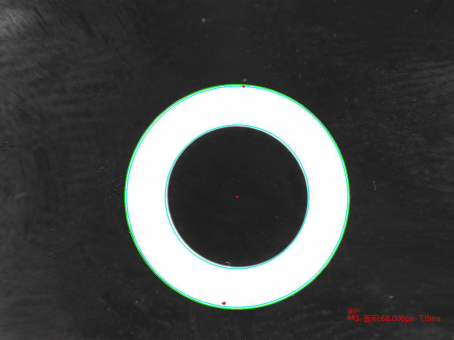

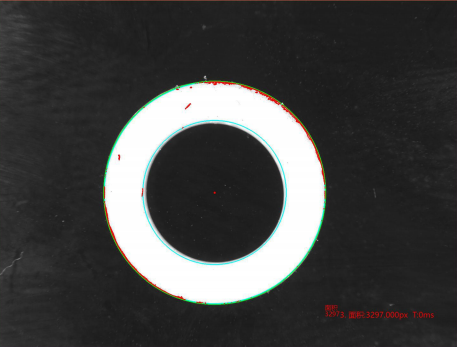

Product impurity detection can be realized

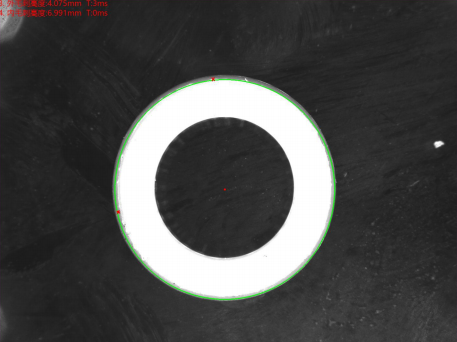

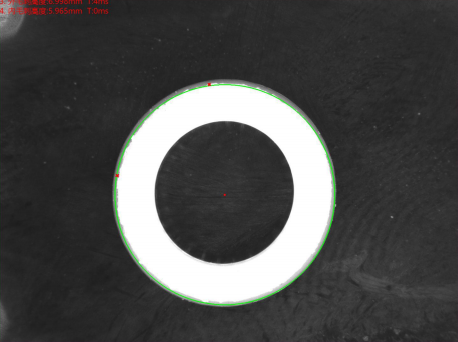

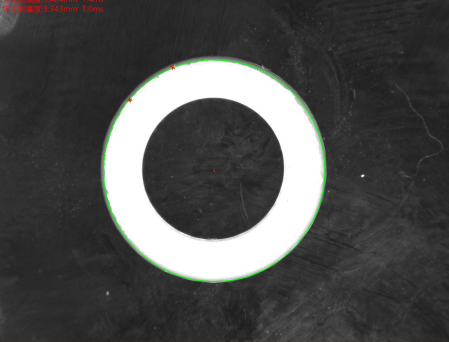

Burr detection

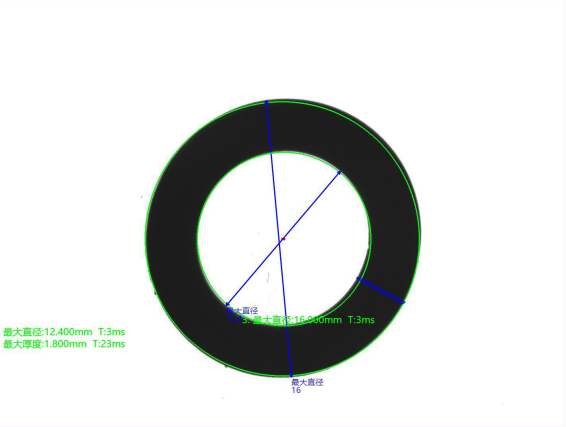

Inner and outer diameter measurement

System installation requirements

Inspection space for equipment placement: When installing standard inspection equipment for Siptech Vision inspection systems, it is necessary to ensure sufficient space for installation of equipment.

Ambient temperature: 0-50 degrees Celsius;

Air humidity: below 90% RH;

Electronic interference: Provide a place for the device with less electronic interference.

Power supply: AC 220V, 50Hz, power consumption < 1KVA.
