How does the visual appearance inspection machine ensure that the rubber parts are flawless?

Rubber products are various products or parts made of rubber materials. Rubber is an elastic material, made of natural rubber (rubber tree secretions) or synthetic rubber (such as nitrile rubber, styrene butadiene rubber, etc.). It has good elasticity, wear resistance, high temperature resistance, chemical corrosion resistance and other characteristics, and has been widely used in various fields.

Can realize the detection of hair, trachoma, impurity wire rubber products.

The rubber visual appearance inspection machine is a equipment that uses visual technology to detect the appearance quality of rubber products. Equipped with high-resolution camera system and professional image processing software, rubber products can be automated appearance inspection to ensure that product quality meets standards.

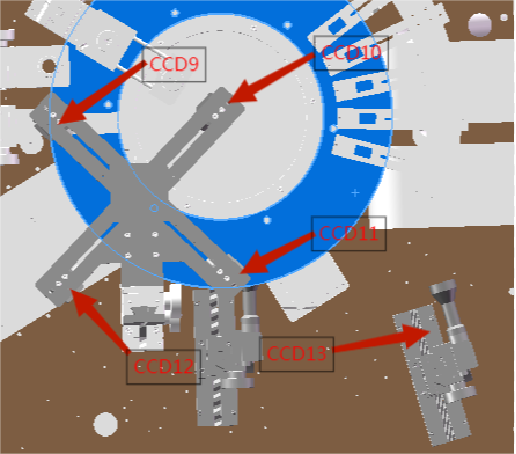

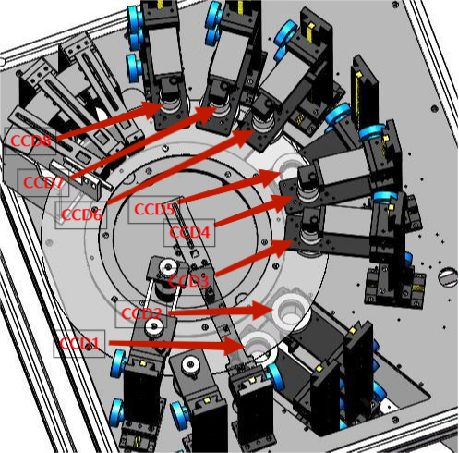

Inside the equipment

Equipment characteristics

High-precision detection: The use of advanced vision system, can accurately detect the surface of rubber products defects, defects, stains and other problems.

Automatic inspection: The equipment can automatically carry out inspection operations, which is suitable for rapid detection needs on the production line and improve production efficiency.

Multiple defect recognition: can identify different types of appearance defects, such as bubbles, cracks, stains, etc.

Data logging and analysis: Equipment often has a data logging function that can record test results and analyze them, helping manufacturers with quality control and improving production processes.

Main function

Defect detection: It can detect various defects on the surface of rubber products, such as bubbles, cracks, stains, color difference, etc.

Foreign body detection: detection and identification of foreign bodies on the surface of rubber products to ensure product quality.

Size measurement: Measure the size of rubber products to ensure compliance with specifications.

Surface quality assessment: Evaluate the quality of the surface of rubber products, including finish, flatness and other aspects.

Automatic classification: Automatic classification of qualified and unqualified products according to the test results to improve production efficiency.

Equipment composition and main organization

Visual inspection software

Industrial computer

display

Industrial camera

Camera adjustment module

Industrial lens

illuminant

Control system

Servo motor

Reduction gear

Equipment inspection process

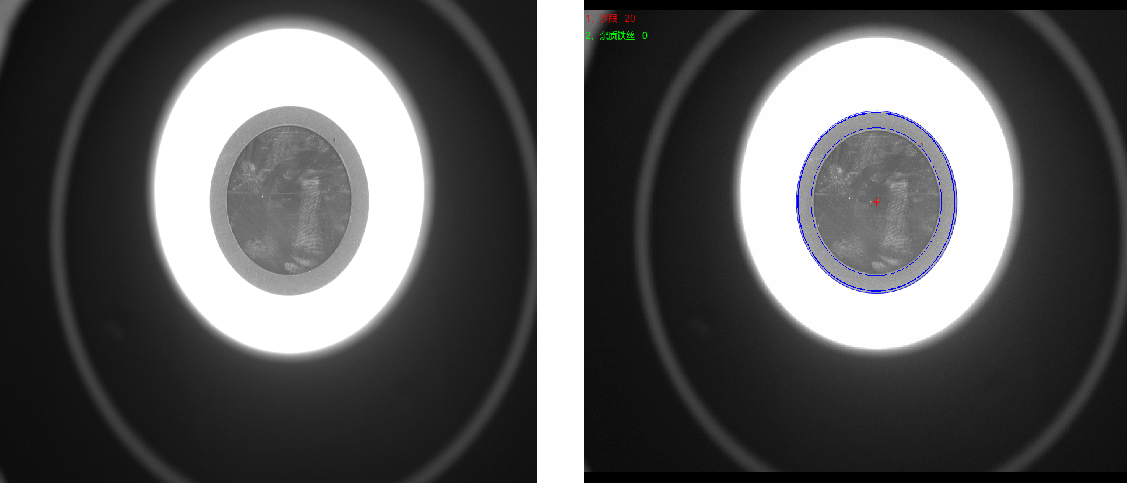

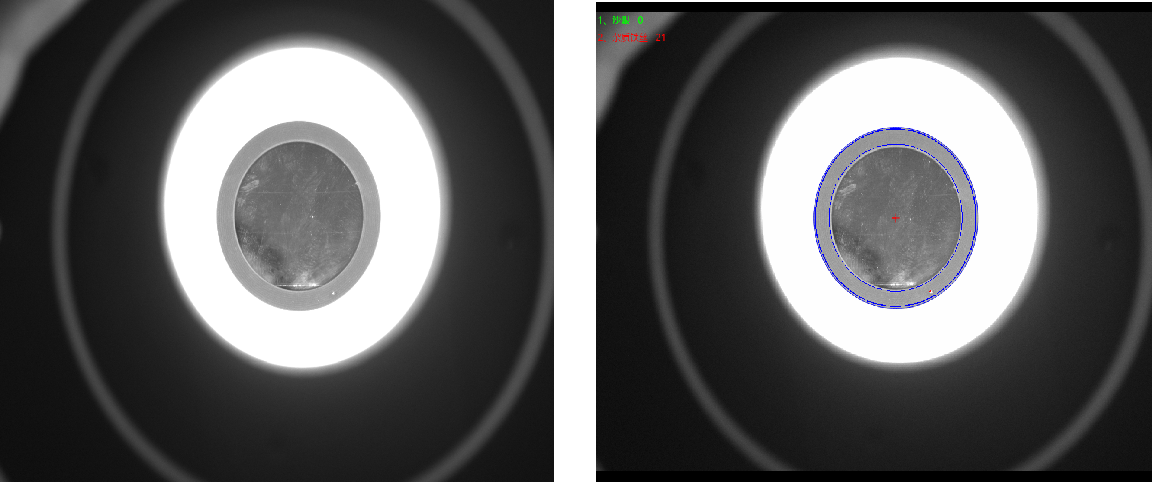

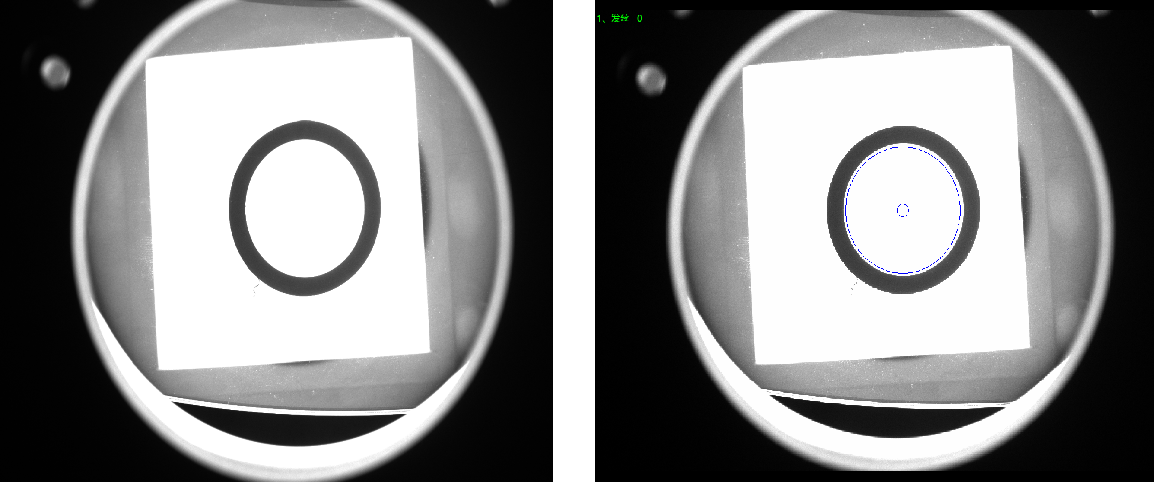

Detection effect

Impurity wire detection

Trachoma detection

Hair detection

System installation requirements

Inspection space for equipment placement: When installing standard inspection equipment for Siptech Vision inspection systems, it is necessary to ensure sufficient space for installation of equipment.

Ambient temperature: 0-50 degrees Celsius;

Air humidity: below 90% RH;

Electronic interference: Provide a place for the device with less electronic interference.

Power supply: AC 220V, 50Hz, power consumption < 1KVA.
