Visual inspection equipment: one-click identification of conductive film defects

Conductive film, thin film material, conductive properties, often used in electronic devices, optoelectronic devices and sensors. Widely used in touch screen, liquid crystal display, photovoltaic cells, flexible electronic equipment, sensors, electromagnetic shielding and other fields. In these applications, conductive films can be used as key components of electrodes, wires, or sensors.

In this case, the appearance of the conductive film is detected, the concentricity of the position key is detected, and the backlight detection method of the appearance vision detection equipment is used. The number of tests per minute is not less than 20-40 pieces (depending on the feed speed of the product).

Visual inspection equipment, equipment used to detect product appearance defects and surface quality, using visual technology and image processing algorithms. Widely used in electronics, automotive, medical equipment, food packaging and other industries, for the detection of product surface quality problems.

Equipment characteristics

Visual inspection equipment replaces manual visual inspection, improves inspection efficiency and accuracy, and reduces labor costs and human errors in production.

Accurately identify minor defects and changes. Quickly handle the appearance inspection tasks of a large number of products. Automated systems and algorithms reduce the subjectivity of human judgment and improve the reliability of detection. Customized and adjusted according to the needs of different products, suitable for all shapes and sizes of products.

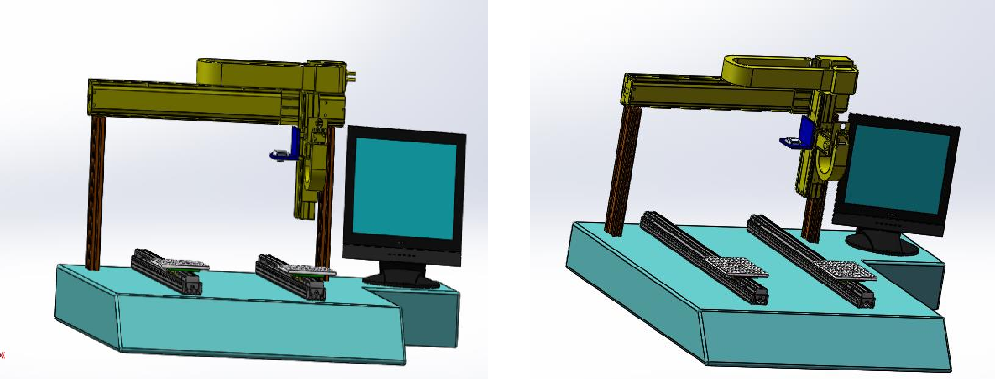

Equipment composition

Visual inspection software

Industrial computer

display

Industrial camera

Camera adjustment module

Industrial lens

illuminant

Detection platform

Control system

PLC motion collaboration

Detection effect

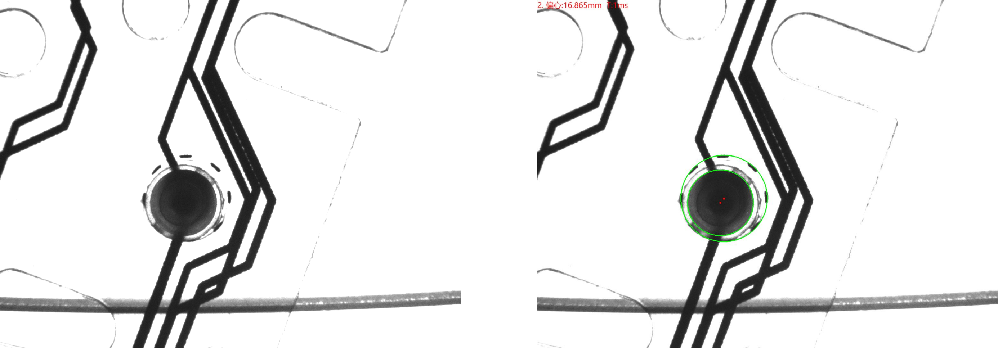

Top backlight detection of defective product original and analysis diagram: NG bad cause: different cardiac analysis results: detectable

Visual inspection system installation requirements

Inspection space for equipment placement: When installing standard inspection equipment for Siptech Vision inspection systems, it is necessary to ensure sufficient space for installation of equipment.

Ambient temperature: 0-50 degrees Celsius;

Air humidity: below 90% RH;

Electronic interference: Provide a place for the device with less electronic interference.

Power supply: AC 220V, 50Hz, power consumption < 1KVA.
